The new range of Retigo Orange Vision Plus combi ovens brings a completely new standard, which combines amazing simplicity of operation thanks to the 7” touch screen with the Vision Controls system and great equipment in the basic price, including 99 programs. A wide range of optional configuration options allows the device to be tailored to the needs of the kitchen. The new Orange Vision Plus offers a great price/performance ratio, plus:
+ 7“ quick response touch screen
+ Highly intuitive and simple controls
+ Active cleaning
+ 7 Fan speeds and automatic fan stop
+ 99 Programs as a standard
+ HACCP right on the main screen
+ LAN and the ethernet connection interface
+ Triple glazed door glass
+ Crosswise orientation of GN, more safety, better visual control
+ Minimum of plastic parts and heavy-duty design

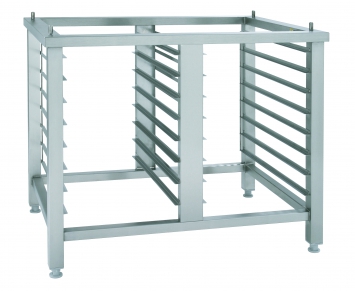

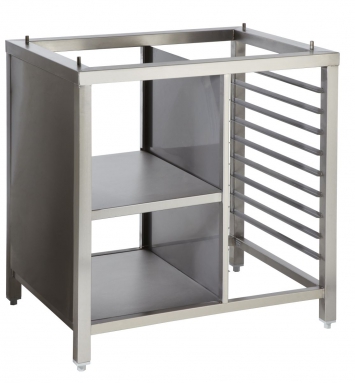

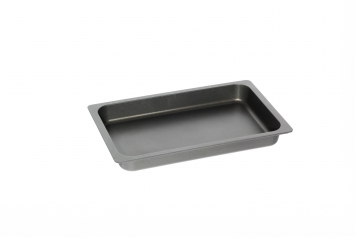

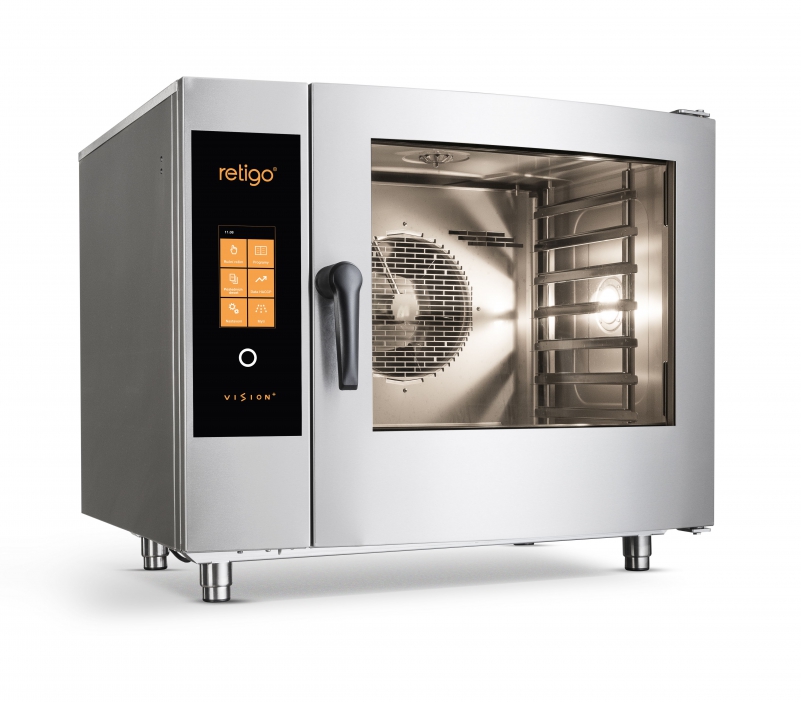

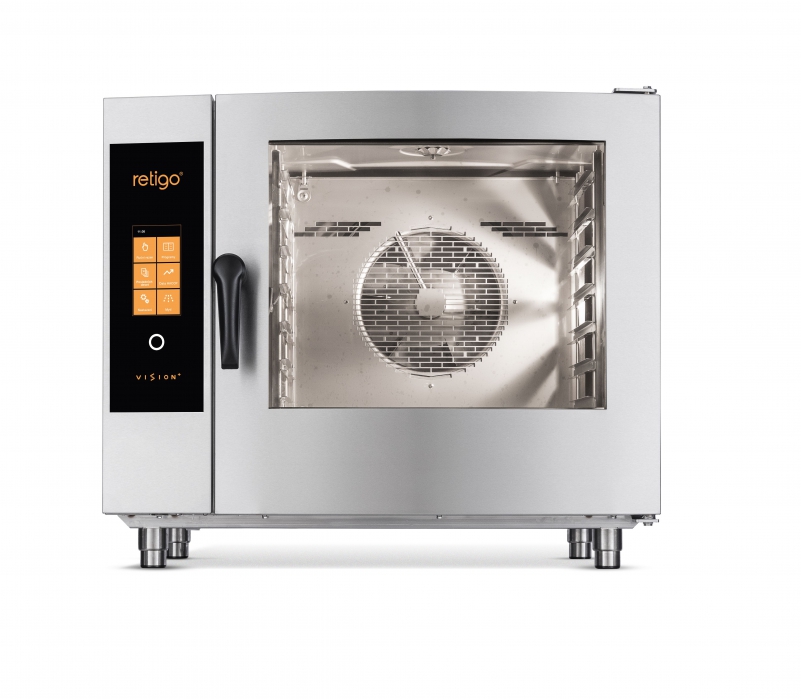

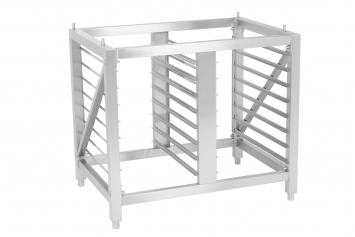

One of Retigo Vision's best-selling sizes of combi oven. The size of 611 is ideal for operations with a capacity of 51-150 meals a day. The gastronorm container size is GN 1/1 (530x325 mm). Wide-ranging accessories can be purchased to go with the 611 size - – various types of stainless steel stands, the Vision Vent hood, etc. Model 611 can be built into a set with another combi oven or regenerator (holding cabinet). The steam generation system is injection or boiler-based. The heat source is electricity or gas.
|
|
Cooking

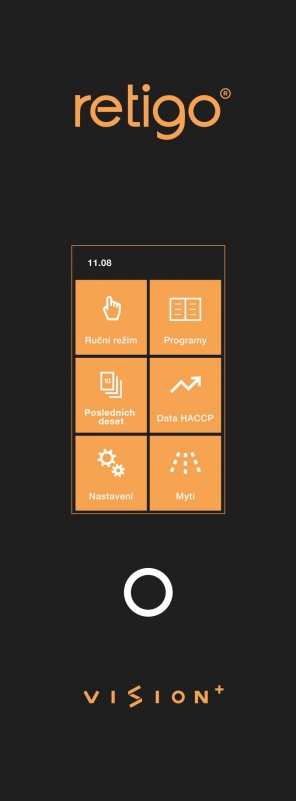

Vision Touch Controls
|
Other equipment
Connectivity
Operation logs
Service
|
Model | O 611 i+ | O 611 b+ | O 611 ig+ |
---|---|---|---|
Technical specification | 2E0611IZ | 2E0611BZ | 2G0611IZ |
Energy | Electricity | Electricity | Gas |
Steam generation | Injection | Boiler | Injection |
Capacity | 7 x GN1/1 | 7 x GN1/1 | 7 x GN1/1 |
Capacity (optional) | 5 x 600/400 | 5 x 600/400 | 5 x 600/400 |
Capacity of meals | 51-150 | 51-150 | 51-150 |
Spacing | 65 mm | 65 mm | 65 mm |
Dimensions (w x h x d) | 933 x 786 x 821 mm | 933 x 786 x 821 mm | 933 x 786 x 821 mm |
Weight | 116 kg | 122 kg | 127 kg |
Total power | 10,9 kW | 10,9 kW | 0,74 kW |
Heat power | 10,3 kW | 10,3 kW | 13 kW |
Steam generator power | - | 9 kW | - |
Fuse protection | 16 A | 16 A | 10 A |
Voltage | 3N~/380-415V/50-60 Hz | 3N~/380-415V/50-60 Hz | 1N~(2~)/220-240V/50-60 Hz |
Noise level | max. 70 dBA | max. 70 dBA | max. 70 dBA |
Water/Drain connection | G 3/4” / 50 mm | G 3/4” / 50 mm | G 3/4” / 50 mm |
Gas connection | - | - | G 3/4” |
Temperature | 30 - 300 °C | 30 - 300 °C | 30 - 300 °C |
A - Flap Valve | B - Chimney | C - Drain | E - Electricity | V1 - Untreated water | V2 - Treated water
A - Flap Valve | B - Chimney | C - Drain | D - Flue gas exhaust | E - Electricity | G - Gas | V1 - Untreated water | V2 - Treated water
