The new range of Retigo Orange Vision Plus combi ovens brings a completely new standard, which combines amazing simplicity of operation thanks to the 7” touch screen with the Vision Controls system and great equipment in the basic price, including 99 programs. A wide range of optional configuration options allows the device to be tailored to the needs of the kitchen. The new Orange Vision Plus offers a great price/performance ratio, plus:
+ 7“ quick response touch screen
+ Highly intuitive and simple controls
+ Active cleaning
+ 99 Programs as a standard
+ HACCP right on the main screen
+ LAN and the ethernet connection interface
+ Crosswise orientation of GN, more safety, better visual control
+ Minimum of plastic parts and heavy-duty design

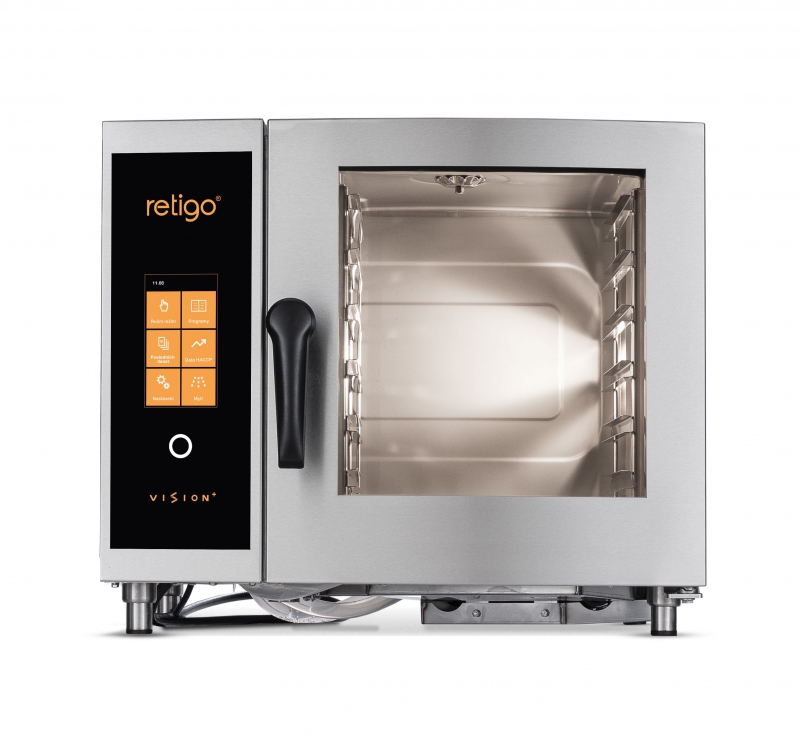

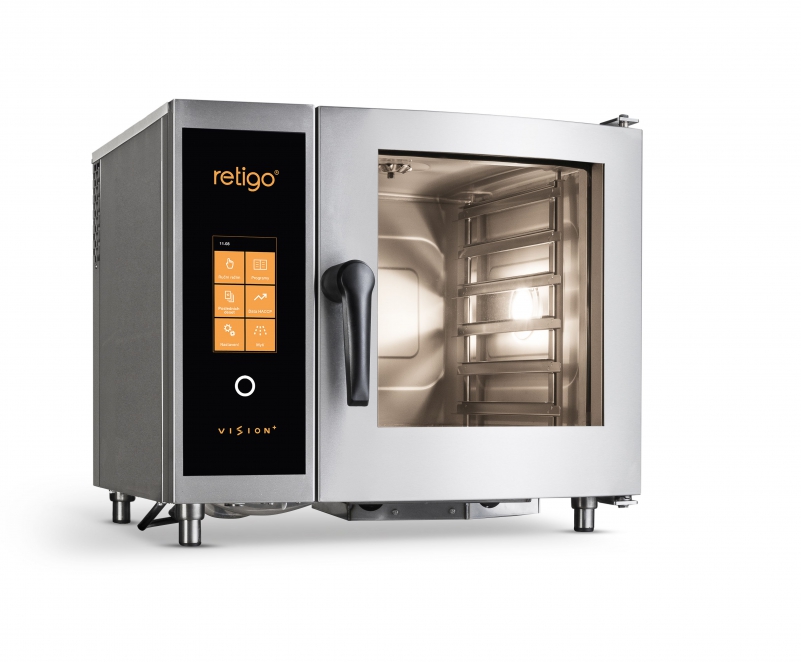

Retigo Vision 623 combi ovens are ideal for operations serving up to 50 portions per day. The gastronorm container size is GN 2/3 (354x325 mm). These combi ovens can be installed on a standard stand, on a wall-mounted console, or right on a table. The steam generation system is by injection only. The heat source is electricity.
|
|
Cooking

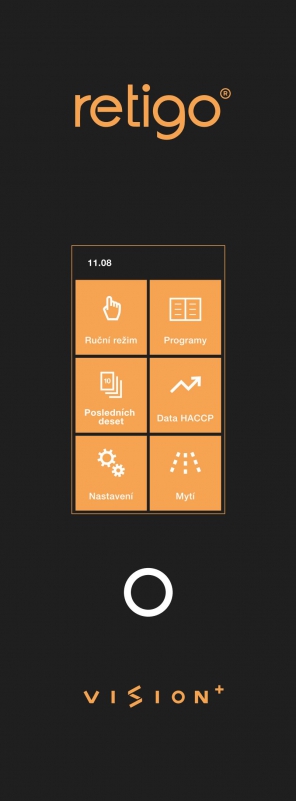

Vision Touch Controls
|
Other equipment
Connectivity
Operation logs
Service
|
Model | O 623 i+ |
---|---|
Technical specification | 2E0623IZ |
Energy | Electricity |
Steam generation | Injection |
Capacity | 6 x GN2/3 |
Capacity of meals | 30-50 |
Spacing | 65 mm |
Dimensions (w x h x d) | 683 x 602 x 586 mm |
Weight | 62 kg |
Total power | 5 (3,4*) kW |
Heat power | 4,8 (3,2*) kW |
Fuse protection | 16 A |
Voltage | 3N~/400V/50-60Hz |
Noise level | max. 70 dBA |
Water/Drain connection | G 3/4” / 40 |
Temperature | 30 - 300 °C |
* valid for voltage 1N~/230V/50-60Hz
A - Flap valve | B - Chimney | C - Drain | E - Electricity | V1 - Untreated water | V2 - Treated water
