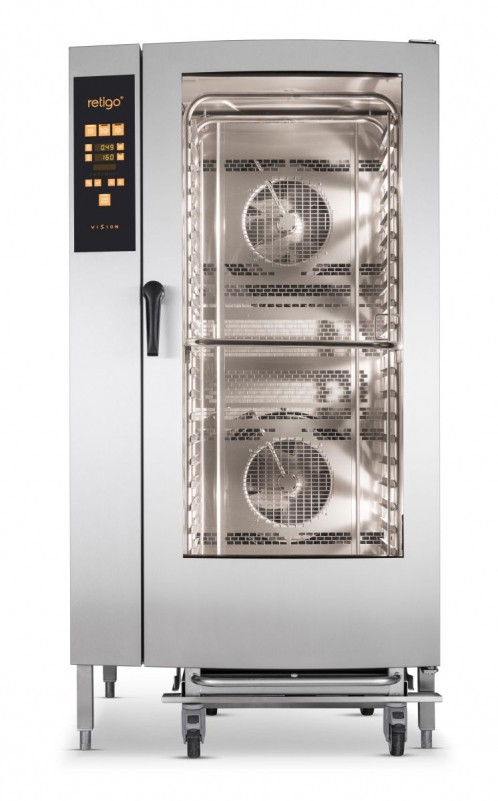

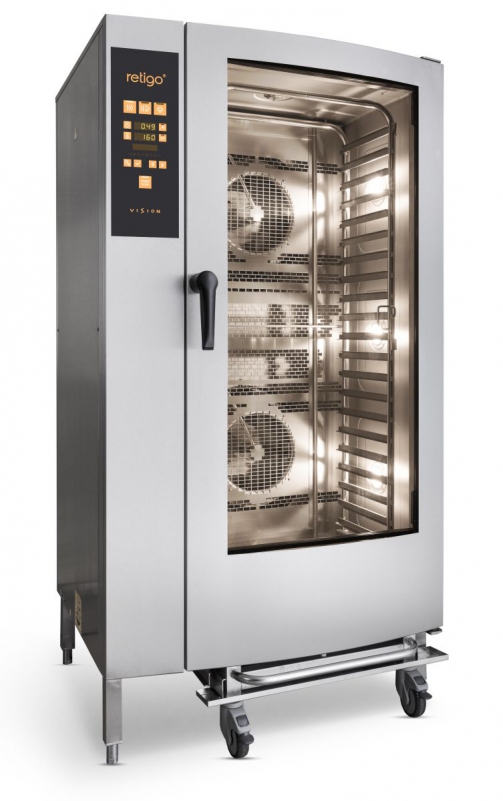

Combi oven O 2011 i, b, ig

Combi oven O 2011 i, b, ig

The model series of combi ovens RETIGO Orange Vision was created from requirements to satisfy customers with fewer demands on the number of functions in the basic configuration, but with emphasis on high quality and easy control. As opposed to the model series Blue Vision, Orange Vision combi ovens are equipped only with an automatic cleaning system, 7-speed fan, and essential basic functions. Optional equipment includes an integrated shower, a flap valve and 99 programs with 9 steps. The customer thus has the option of configuring his machine based on needs and not to pay for something he will never use. The elegant functional design underscores the simplicity of devices, the LED display enables easy settings and control.

The Retigo Vision 2011 combi oven is ideal for operations with a capacity of 400-600 meals a day. The gastronorm container size is GN 1/1 (530x325 mm). This combi oven's basic equipment includes a trolley. Customers can also purchase wide-ranging accessories to go with this size combi oven - spare trolley, equipment for the banquet-style system of food service, etc. There is either an injection or boiler steam generation system. The heat source is electricity or gas..

Request

TODO /3d/nejaky_soubor_b-623.html

Unique benefits

Vision Perfect Cooking

Make your diners a great reason to keep returning to your place. With Retigo Vision combi ovens, you have the peace of mind that you will always achieve outstanding cooking results. The prepared foods have a perfect color, are juicy, crispy, and healthy with minimal fat content.

Vision Design

Simply keeps you cooking with ease and comfort. Experience an excellent combination of features, exceptional ergonomics, and an attractive appearance. All this with a focus on safety, hygiene, and long-time reliability.

My Vision Controls

Gives you time to concentrate on cooking and things that really matter to you. The simplest controls on the market will save you time and enable you to quickly and easily make all the necessary settings. Display response is perfect even with grease or gloved hands.

Smart Investment

Generates money on savings for you every day. In-built heat exchanger, triple glazed door glass, 50 mm thick thermal insulation combined with low consumption automatic cleaning will ensure you a great return on investment.

Features & Benefits

Cooking

  • Hot air 30 – 300 °C
  • Combination 30 – 300 °C
  • Steaming 30 – 130 °C
  • Bio steaming 30 – 98 °C
  • Overnight cooking – Saves time and money.
  • Advanced steam generation system – Two-step water preheating with an in-built heat exchanger for perfect steam cooking results.
  • Crosswise racks – Safer and comfortable GN handling. Better product visual control.
  • Regeneration/banqueting – Cook, chill, and regenerate to serve more diners in shorter times.
  • Automatic preheating/cooling minimizes the loading temperature drop. Start cooking with the desired temperature.
  • Sous-vide, Drying, Sterilization, Confit, Smoking – Great way to make your menu special.

Vision Touch Controls

  • Touch panel – Panel works under all conditions and has a fast response, no mechanical elements, buttons or wheels.
  • Automatic start – The ability to schedule a delayed start.
  • Continuous cooking time option - Saves your time during busy operations.

Other equipment

  • Active Cleaning – Low-cost automatic cleaning. No chef‘s time spent on cleaning anymore.
  • Triple glazed door glass - Advanced energy savings and external glass that does not burn you.
  • 7 Fan speeds – Precise control of air distribution for desired results with different products.
  • Automatic Fan stop – No scalding when the door opened quickly.
  • Auto-reversing fan – Excellent evenness to deliver high product color and texture uniformity.
  • Massive door handle – Comfortable and safe handling with silver ion material contain for bacteria reduction.
  • AISI 304 stainless steel – Exceptional quality with a special coating for an extended lifetime.
  • Hygienic cooking chamber with round inner corners – Trouble-free maintenance.
  • Run-off tray under the door – No slipping on the wet floor.
  • Two water inlets – Saves a water treatment unit‘s capacity.
  • WSS (Water Saving System) – Special drain system & in-built heat exchanger to save water-related cost.
  • Standard loading trolley.

Connectivity

  • USB plug-in – Transfer useful data easily to and from the combi oven.
  • VisionCombi software – Program and pictogram management in your PC, HACCP data view.

Operation logs

  • HACCP records – Easy and immediate analysis of critical cooking points.
  • Complete operating records

Service

  • BCS (Boiler Control System) – Nothing stops you from steam cooking with the in-built advance direct steam generation system.
  • SDS (Service Diagnostic System) – Easy unit check-up and troubleshooting.

Technical data

ModelO 2011 iO 2011 bO 2011 ig
Technical specification 2E2011IA 2E2011BA
2G2011IA
Energy Electricity Electricity Gas
Steam generator Injection Boiler Injection
Capacity 20 x GN1/1 20 x GN1/1 20 x GN1/1
Capacity of meals 400-600 400-600 400-600
Spacing
63 mm 63 mm 63 mm
Dimensions (w x h x d)  948 x 1804 x 834 mm 948 x 1804 x 834 mm 948 x 1804 x 834 mm
Weight 235 kg 245 kg 257 kg
Total power 36,9 kW 36,9 kW 1,28 kW
Heat power  36 kW 36 kW 45 kW
Steam generator power - 33 kW -
Fuse protection 63 A 63 A 10 A
Voltage 3N~/380-415V/50-60 Hz 3N~/380-415V/50-60 Hz 1N~(2~)/220-240V/50-60 Hz
Noise level max. 70 dBA max. 70 dBA max. 70 dBA
Water/drain connection G 3/4” / 50 mm G 3/4” / 50 mm G 3/4” / 50 mm
Gas connection - - G 3/4”
Temperature 30 - 300 °C 30 - 300 °C 30 - 300 °C



Drawings

Electric Vision combi oven O 2011 i, b





                          A - Flap valve | B - Chimney | C - Drain | E - Electricity | V1 - Untreated water | V2 - Treated water


Gas Vision combi oven O 2011 ig

A - Flap valve | B - Chimney | C - Drain | D1, D2 - Flue gas exhaust | E - Electricity | G - Gas | V1 - Untreated water | V2 - Treated water


Loading trolley VO2011R
