Safety door opening in two steps

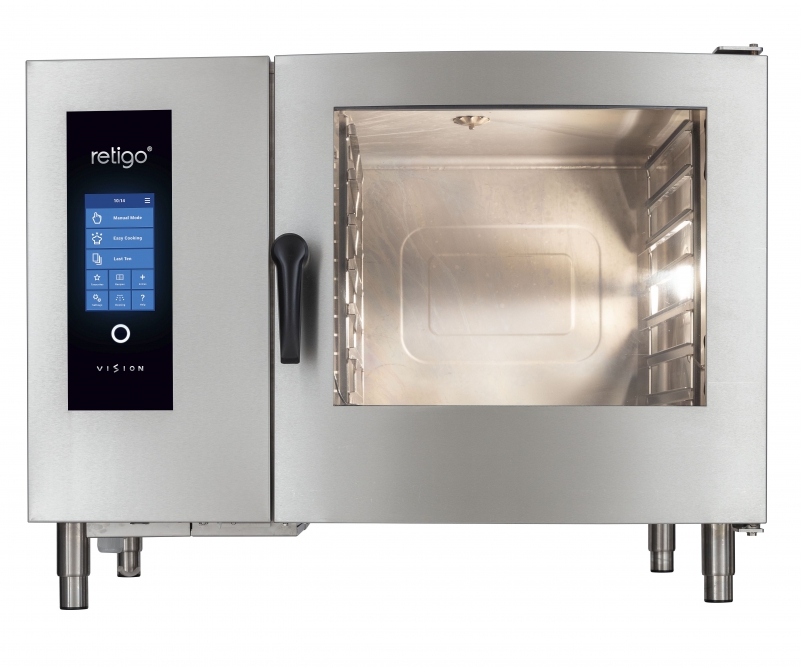

RETIGO Blue Vision is the highest model series of RETIGO Vision combi ovens. Individual combi ovens are designed to offer everything the demanding user needs. It is controlled through the 8" control panel, offering quick access to all key and special functions. All models in basic configuration are equipped with the functions of an automatic cleaning system and Easy Cooking, a flap valve, and a six-point temperature core probe.
The size of 621 is ideal for operations with a capacity of 100-300 meals a day. The gastronorm container size is GN 2/1 (650x530 mm) or GN1/1 (530x325 mm). Wide-ranging accessories can be purchased to go with the 621 size - stainless steel stand, etc. Model 621 can be built into a set with a 621 combi oven or a 1021 combi oven. The steam generation system is an injection and the heat source is electricity.
|
|
Cooking
Vision Touch Controls
|
Other equipment
Connectivity
Operation logs
Service
|
Model | B 621 i |
---|---|
Technical specification | 2E0621IA |
Energy | Electricity |
Steam generation | Injection |
Capacity | 6 x GN2/1 |
Capacity (optional) | 12 x GN1/1 |
Capacity of meals | 100 - 300 |
Spacing | 73 mm |
Dimensions (w x h x d) | 1121 x 826 x 1018 mm |
Weight | 160 kg |
Total power | 18,6 kW |
Heat power | 18 kW |
Fuse protection | 32 A |
Voltage | 3N~/380-415V/50-60 Hz |
Noise level | max. 70 dBA |
Water/Drain connection | G 3/4” / 50 mm |
Temperature | 30 - 300 °C |
A - Flap Valve | B - Chimney | C - Drain | E - Electricity | V1 - Untreated water | V2 - Treated water
