RETIGO Blue Vision is the highest model series of RETIGO Vision combi ovens. Individual combi ovens are designed to offer everything the demanding user needs. It is controlled through the 8" control panel, offering quick access to all key and special functions. All models in basic configuration are equipped with the functions of automatic cleaning system and Easy Cooking, a flap valve and six-point temperature core probe.

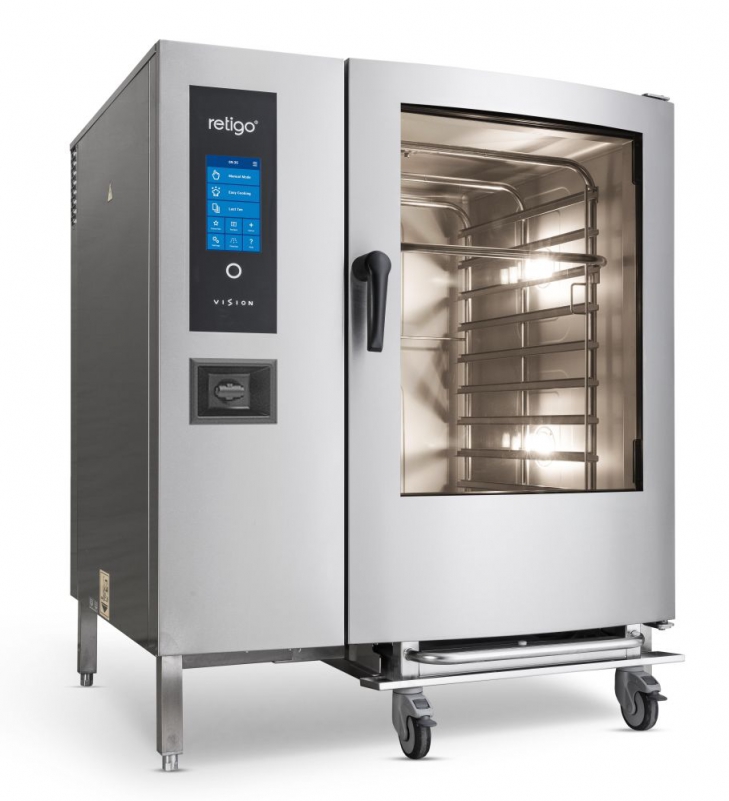

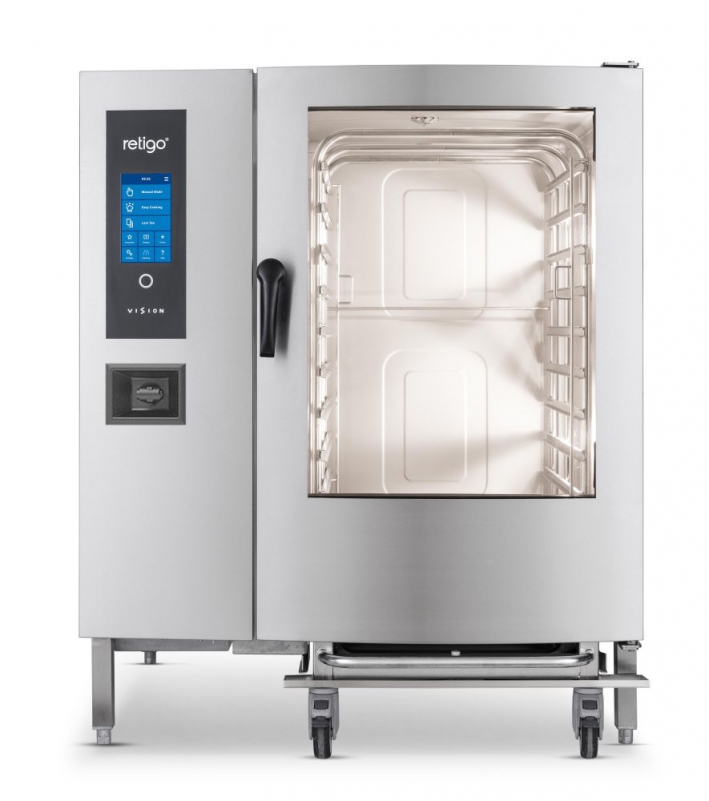

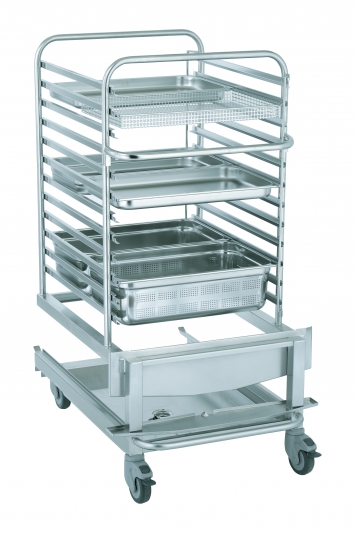

The Retigo Vision 1221 combi oven is ideal for operations with a capacity of 400-600 meals a day. The gastronorm container sizes are GN 2/1 (650x530 mm) or GN 1/1 (530x325 mm). This combi oven's basic equipment includes a trolley. Customers can also purchase several different accessories to go with this size combi oven - spare trolley, equipment for the banquet-style system of food service, etc. There is either an injection or boiler steam generation system. The heat source is electricity or gas.
Vision Perfect Cooking
Make your diners great reason to keep returning to your place. With Retigo Vision combi ovens, you have the peace of mind that you will always achieve outstanding cooking results. The prepared foods have a perfect colour, are juicy, crispy and healthy with a minimal fat contain.
Simply keeps you cooking with ease and comfort. Experience an excellent combination of features, exceptional ergonomics and attractive appearance. All this with a focus on safety, hygiene and long time reliability.
My Vision Controls
Gives you time to concentrate on cooking and things that really matter to you. The simpliest controls on the market will save you time and enable you to quickly and easily make all the necessary settings. Display response is perfect even with grease or gloved hands. Adapt the main menu to your needs.
Generates money on savings for you every day. In-buil heat exchanger, tripple glazed door glass, 50 mm thick thermoinsulation combined with low consumption automatic cleaning will ensure you great return on investment.
Vision Touch Controls
|Model||B 1221 i||B 1221 b||B 1221 ig|
|Capacity||12 x GN2/1||12 x GN2/1||12 x GN2/1|
|Capacity of meals||400-600||400-600||400-600|
||65 mm||65 mm||65 mm|
|Dimensions (w x h x d)||1111 x 1343 x 961 mm||1111 x 1343 x 961 mm||1111 x 1343 x 961 mm|
|Weight||210 kg||220 kg||229 kg|
|Total power||37,1 kW||37,1 kW||1,28 kW|
|Heat power||36 kW||36 kW||45 kW|
|Steam generator power||-||33 kW||-|
|Fuse protection||63 A||63 A||10 A|
|Voltage||3N~/380-415V/50-60 Hz||3N~/380-415V/50-60 Hz||1N~(2~)/220-240V/50-60 Hz|
|Noise level||max. 70 dBA||max. 70 dBA||max. 70 dBA|
|Water/Drain connection||G 3/4” / 50 mm||G 3/4” / 50 mm||G 3/4” / 50 mm|
|Gas connection||-||-||G 3/4”|
|Temperature||30 - 300 °C||30 - 300 °C||30 - 300 °C|
A - Flap valve | B - Chimney | C - Drain | E - Electricity | V1 - Untreated water | V2 - Treated water
A - Flap valve | B - Chimney | C - Drain | D1, D2 - Flue gas exhaust | E - Electricity | G - Gas | V1 - Untreated water | V2 - Treated water
